MIDC Jejuri Workshop
Workshop located in the MIDC industrial area at Jejuri, Pune, spread across 26,000 sq.ft with 9,000 sq.ft of shaded area.
05 - MIDC Jejuri, Pune
Infrastructure, Machinery & Quality
A 26,000 sq.ft workshop with in-house bending, fabrication, material handling, testing and measuring capability.
Facility Overview
Manufacturing capability at Additional MIDC Jejuri

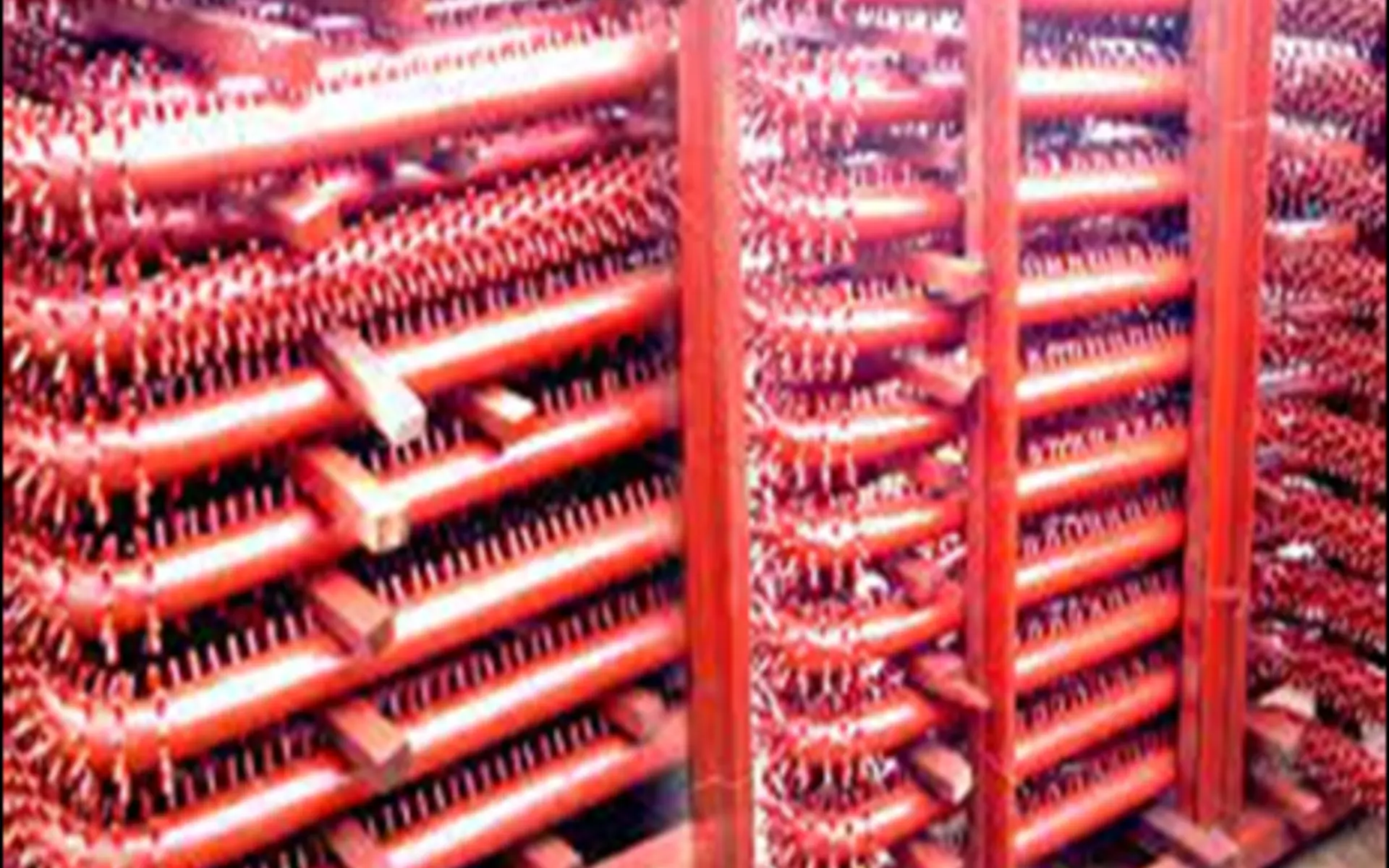

The workshop is located in the MIDC industrial area at Jejuri, Pune, and is equipped for boiler pressure parts, cement equipment, material handling equipment and industrial fabrication.
The current facility spans 26,000 sq.ft with 9,000 sq.ft of shaded area. The company profile states a planned future expansion up to 3 acres with up to 50,000 sq.ft of shaded area; no completion date is claimed.
11 Facility Points
Complete facility information from the company profile
Planned Expansion
The profile records a future expansion plan up to 3 acres with shaded area up to 50,000 sq.ft.
Booster Bending
Capacity from 25.4 mm OD × 3 mm thickness to 114 mm OD × 12 mm thickness, producing cold bends with critical short radius ≥0.7×OD.
Engineering Team
Around 15+ years of experience and in-depth knowledge in boiler pressure parts, cement equipment, material handling and the sugar industry.
Design & Development
The core engineering team can design and develop parts when customer drawings and design data are not available, with manufacturing and documentation support.
Experienced Fabrication Team
Fitters and fabricators have hands-on experience in boiler pressure-part fabrication, supporting quality to specification and delivery schedules.
In-House Machinery
Modern metal-forming, joining, machining and welding machines support in-house fabrication.
Material Handling
In-house material-handling facility up to 10 tons with necessary safety equipment and procedures.
Design Software
The design team is aided by necessary software for job design, development and documentation.
QMS & Tube Stock
The Quality Management System controls production, while optimum stock is maintained for straight tubes in Indian, Chinese and other international standards.
IBR Certification
IBR certification issued by the Directorate of Steam Boilers, Maharashtra, as stated in the company profile.
Complete Machinery Register
Machines, capacities and quantities
Search or filter the complete list. On mobile, each row converts into a readable specification card.
Source numbering note: the supplied profile assigns item number 11 to both the Stud Welding Machine and the MIG Welding Machine. Both are preserved below as 11A and 11B, so the 35-number source list contains 36 line entries.
| Ref. | Machine / Instrument | Capacity / Specification | Quantity |
|---|---|---|---|
| 01 | CNC Tube Booster Bending Machine | Max. 114 mm dia. × 12 mm thickness | 1 No. |
| 02 | Semi-Automatic Tube Bending Machine | Max. 63.5 mm dia. × 6 mm thickness | 1 No. |
| 03 | Plate Bending Machine | 2 m × 20 mm thickness | 1 No. |
| 04 | Plate Bending Machine | 2 m × 16 mm thickness | 1 No. |
| 05 | Plate Bending Machine | 1.3 m × 12 mm thickness | 1 No. |

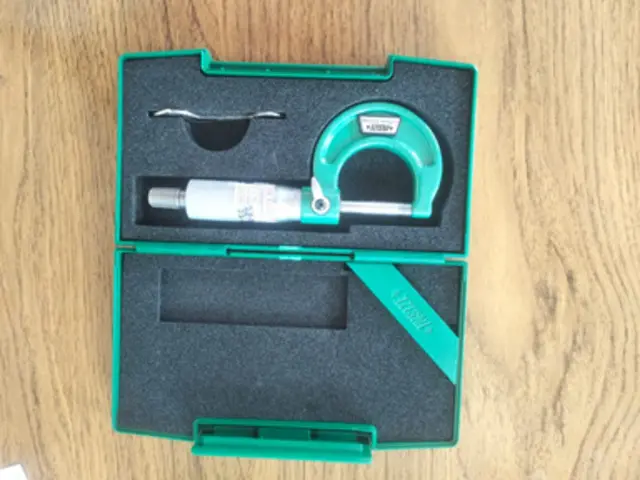

| 06 | Micrometer | Not stated | 2 Nos. |
| 07 | Magnetic Drill Machine | Not stated | 2 Nos. |
| 08 | CO₂ Welding Machine | 400 A | 4 Nos. |
| 09 | Digital Protector | Not stated | 1 No. |
| 10 | TIG Welding Machine | 400 A | 1 No. |
| 11A | Stud Welding Machine | 400 A · 16 mm dia. | 1 No. |
| 11B | MIG Welding Machine | 400 A | 1 No. |
| 12 | ARC Welding Machines / Rectifiers | 400 A | 20 Nos. |
| 13 | Swaging Machine | 114 mm OD × 12 mm thickness | 1 No. |
| 14 | Compressor | 12 kg/cm² | 1 No. |
| 15 | Electric Tube Beveling Machine | 28-76 mm ID | 1 No. |
| 16 | Heavy-Duty Drill Machine | Not stated | 1 No. |
| 17 | Heavy-Duty Table Drill Machine | Not stated | 2 Nos. |
| 18 | Plasma Cutting Machine | CAT-100 | 2 Nos. |
| 19 | PUG Machine | 50 mm thickness | 2 Nos. |
| 20 | Hydro-Test Pump | 320 kg/cm² | 1 No. |
| 21 | Hydro-Test Pump | 50 kg/cm² | 1 No. |
| 22 | AG-7 Grinding Machine | Not stated | 15 Nos. |
| 23 | AG-5 Grinding Machine | Not stated | 20 Nos. |
| 24 | AG-4 Grinding Machine | Not stated | 25 Nos. |
| 25 | Straight Grinder Machine | Not stated | 10 Nos. |
| 26 | Chain Pulley Blocks | Various sizes | 10 Nos. |

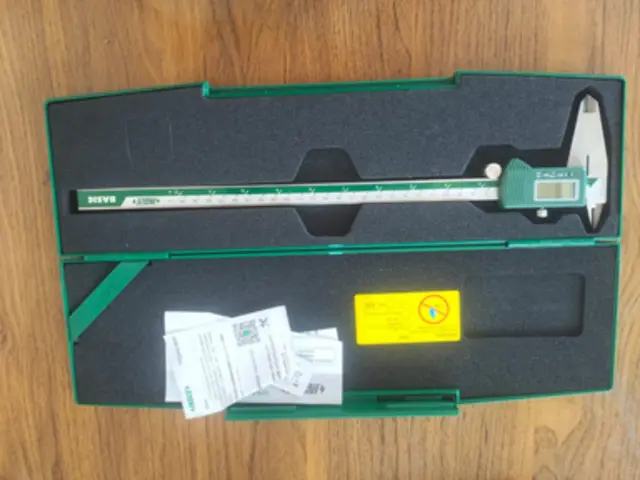

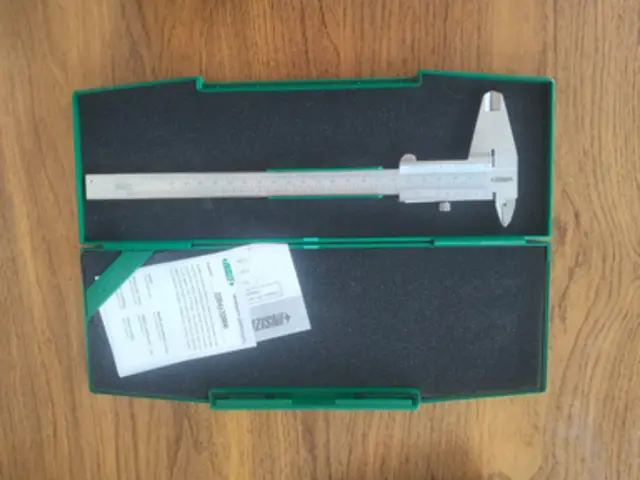

| 27 | Vernier Caliper | Not stated | 3 Nos. |
| 28 | Dial Gauge | Not stated | 1 Set |
| 29 | Ultrasonic Thickness Instrument | Not stated | 1 No. |
| 30 | Hydraulic Tube Expander | Not stated | 2 Nos. |
| 31 | Manual Tube Expander | Not stated | 1 Set |
| 32 | Tube Beveling Machine | Not stated | 1 No. |
| 33 | Mother Oven | Not stated | 1 No. |
| 34 | Portable Oven | Not stated | 2 Nos. |
| 35 | Hydra | 10 MT | 1 No. |
Facility Photographs
The workshop and quality checks in practice

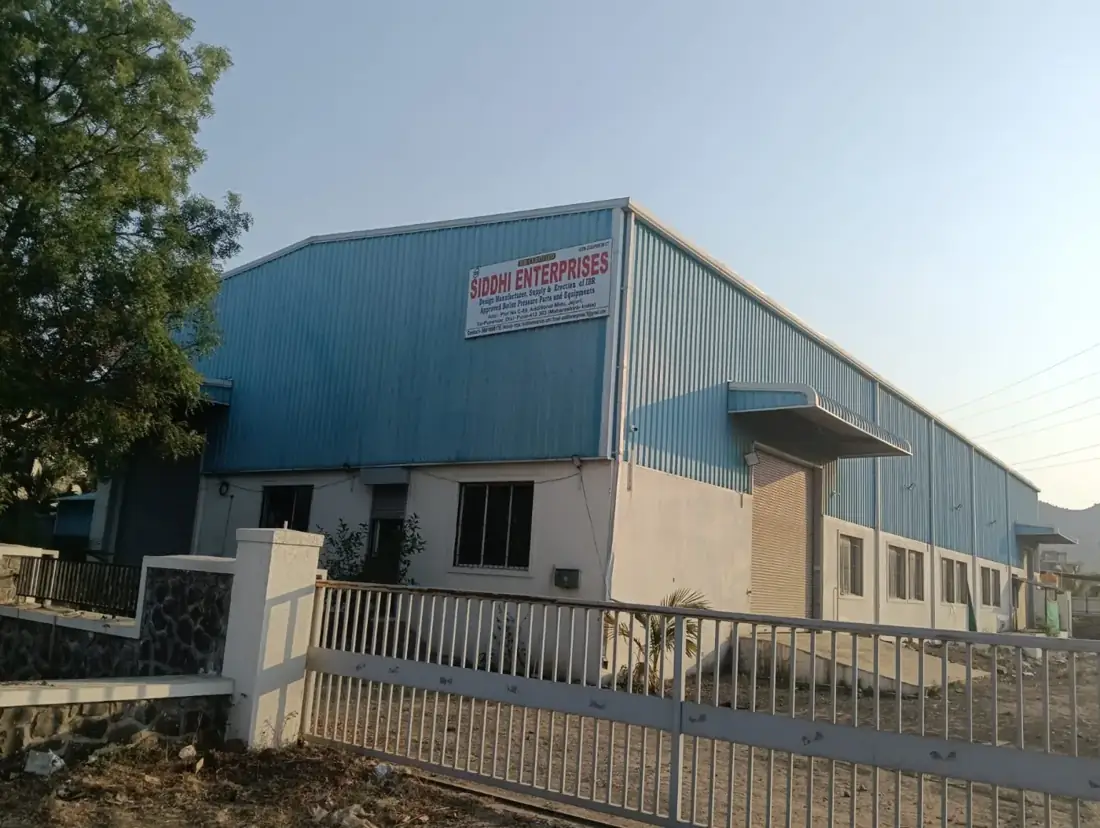

Photographs taken at the Additional MIDC Jejuri unit. More work photographs are on the gallery page.
Nine Testing Facilities
Inspection and testing availability
The availability and capacities below match the supplied company profile. Third-party tests are identified clearly.
Motorised pump up to 320 kg/cm²; hand pump up to 20 kg/cm².
Dye penetrant testing availability stated in the profile.
Ultrasonic testing availability stated in the profile.
Thread gauge and pressure gauge are listed as measuring instruments.
Radiographic testing is arranged through a third party.
Magnetic-particle testing is arranged through a third party.
Chemical and tensile tests are arranged through a third party.
Physical and micro testing is arranged through a third party.
Positive Material Identification testing is arranged through a third party.

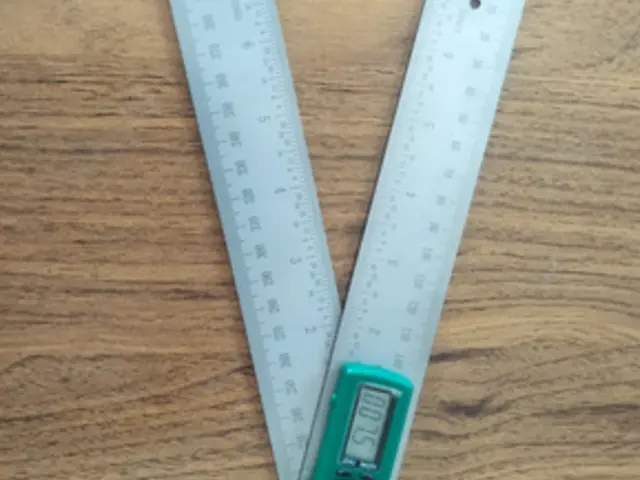

Measuring Instruments
Instrument photographs from the supplied profile

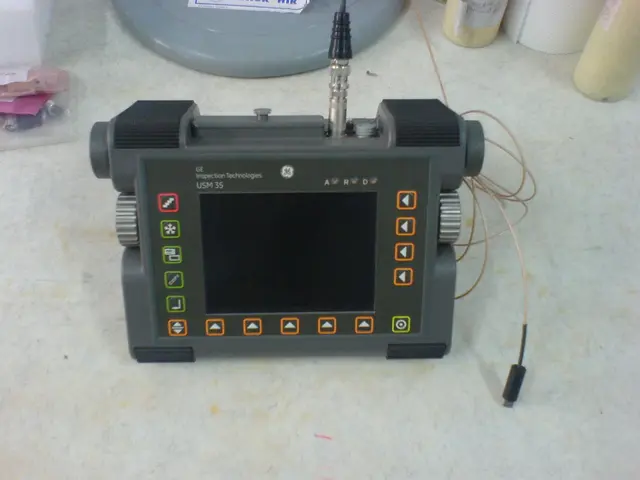

Profile-extracted measuring-instrument photographs are shown below. The ultrasonic instrument uses a clearly identified illustrative image because the profile lists the equipment but does not include a dedicated photograph.
Capability Review
Need to confirm capacity for your job?
Share the drawing, material, size, quantity and testing requirement with our team.
